Calculate Size of Inverter & Battery Bank
October 2, 2015 62 Comments
Calculate Size of Inverter for following Electrical Load .Calculate Size of Battery Bank and decide Connection of Battery.
Electrical Load detail:
- 2 No of 60W,230V, 0.8 P.F Fan.
- 1 No of 200W,230V, 0.8 P.F Computer.
- 2 No of 30W,230V, 0.8 P.F Tube Light.
Inverter / Battery Detail:
- Additional Further Load Expansion (Af)=20%
- Efficiency of Inverter (Ie) = 80%
- Required Battery Backup (Bb) = 2 Hours.
- Battery Bank Voltage = 24V DC
- Loose Connection/Wire Loss Factor (LF) = 20%
- Battery Efficiency (n) = 90%
- Battery Aging Factor (Ag) =20%
- Depth of Discharge (DOD) =50%
- Battery Operating Temp =46ºC
| Temp. °C | Factor |
| 80 | 1.00 |
| 70 | 1.04 |
| 60 | 1.11 |
| 50 | 1.19 |
| 40 | 1.30 |
| 30 | 1.40 |
| 20 | 1.59 |
Calculation:
Step 1: Calculate Total Load:
- Fan Load= No x Watt =2×60=120 Watt
- Fan Load=(No x Watt)/P.F=(2×60)/0.8= 150VA
- Computer Load= No x Watt =1×200=200 Watt
- Computer Load=(No x Watt)/P.F =(1×200)/0.8= 250VA
- Tube Light Load= No x Watt =2×30=60 Watt
- Tube Light Load=(No x Watt)/P.F =(2×30)/0.8= 75VA
- Total Electrical Load=120+200+60 =380 Watt
- Total Electrical Load=150+250+75= 475VA
Step 2: Size of Inverter:
- Size of Inverter=Total Load+(1+Af) / Ie VA
- Size of Inverter= 475+(1+20%) / 80%
- Size of Inverter= 712 VA
Step 3: Size of Battery:
- Total Load of Battery Bank= (Total Load x Backup Capacity) / Battery Bank Volt
- Total Load of Battery Bank=(380 x 2) / 24 Amp Hr
- Total Load of Battery Bank= 32.66 Amp Hr
- Temperature Correction Factor for 46ºC (Tp)=1
- Size of Battery Bank=[ (Load) x (1+LF) x (1+Ag) x Tp] / [n x DOD] Amp/Hr
- Size of Battery Bank= (32.66 x (1+20%) x (1+20%) x 1) / (90% x 50%)
- Size of Battery Bank= 101.3 Amp/Hr
Step 4: Connection of Battery:
If We Select 120 Amp Hr , 12V DC Battery for Battery Bank:
Series Connection:
- Series configurations will add the voltage of the two batteries but keep the amperage rating (Amp Hours) same.
- Condition-I :
- Selection of Battery for Voltage = Volt of Each Battery <= Volt of Battery Bank
- Selection of Battery for Voltage =12< 24
- Condition-I is O.K
- No of Battery for Voltage = Volt of Battery Bank / Volt of Each Battery
- No of Battery for Voltage =24/12 = 2 No’s
- Condition-II :
- Selection of Battery for Amp Hr = Amp Hr of Battery Bank <= Amp Hr of Each Battery
- Selection of Battery for Amp Hr =3<=120
- Condition-II is O.K
- We can use Series Connection for Battery & No of Battery required 2 No’s

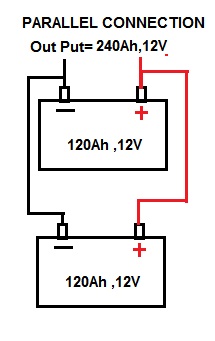

Parallel Configuration
- In Parallel connection, the current rating will increase but the voltage will be the same.
- More the number of batteries more will be the amp/hour. Two batteries will produce twice the amp/hour of a single battery.
- Condition-I :
- Selection of Battery for Amp Hr = Amp Hr of Battery Bank / Amp Hr of Each Battery <=1
- Selection of Battery for Amp Hr =101/120 = 0.84=1 No’s
- Condition-I is O.K
- Condition-II :
- Selection of Battery for Voltage = Volt of Battery Bank = Volt of Each Battery
- Condition-II :Selection of Battery for Voltage for Amp Hr = 24<=12
- Condition-II is Not Full Fill
- We cannot use Parallel Connection for Battery as per our requirement But If We do Practically It is Possible and it will give more Hours of back
Series-Parallel Connection:
- Connecting the batteries up in series will increase both the voltage and the run time.
- Condition-I :
- Selection of Battery for Amp Hr = Amp Hr of Each Battery <= Amp Hr of Battery Bank
- Selection of Battery for Amp Hr =120<=101
- Condition-I is Not Full Fill
- Condition-II :
- Selection of Battery for Voltage = Volt of Each Battery <= Volt of Battery Bank
- Selection of Battery for Voltage = 12<=24
- Condition-II is OK
- We cannot use Parallel Connection for Battery
If We Select 60 Amp Hr , 12V DC Battery for Battery Bank:
Series Connection:
- Selection of Battery for Voltage = Volt of Each Battery <= Volt of Battery Bank
- Selection of Battery for Voltage =12< 24
- Condition-I is O.K
- No of Battery for Voltage = Volt of Battery Bank / Volt of Each Battery
- No of Battery for Voltage =24/12 = 2 No’s
- Condition-II :
- Selection of Battery for Amp Hr = Amp Hr of Battery Bank <= Amp Hr of Each Battery
- Selection of Battery for Amp Hr =3<=60
- Condition-II is Not Full Fill
- We can use Series Connection for Battery
Parallel Configuration
- Condition-I :
- Selection of Battery for Amp Hr = Amp Hr of Battery Bank / Amp Hr of Each Battery <=1
- Selection of Battery for Amp Hr =101/60 = 1.63=1 No’s
- Condition-I is O.K
- Condition-II :
- Selection of Battery for Voltage = Volt of Battery Bank = Volt of Each Battery
- Condition-II :Selection of Battery for Voltage for Amp Hr = 24=12
- Condition-II is Not Full Fill
- We cannot use Parallel Connection for Battery as per our requirement.
Series-Parallel Connection:
- Condition-I :
- Selection of Battery for Amp Hr = Amp Hr of Each Battery <= Amp Hr of Battery Bank
- Selection of Battery for Amp Hr =120<=60
- Condition-I is OK
- No of Battery for Amp Hr = Amp Hr of Battery Bank / Amp Hr of Each Battery
- No of Battery for Amp Hr = 120/60 =1.68 =2 No’s
- Condition-II :
- Selection of Battery for Voltage = Volt of Each Battery <= Volt of Battery Bank
- Selection of Battery for Voltage = 12<=24
- Condition-II is OK
- No of Battery for Voltage = Volt of Battery Bank / Volt of Each Battery
- No of Battery for Voltage = 24 / 12 =2 No’s
- No of Battery Required = No of Battery Amp Hr x No of Battery for Voltage
- No of Battery Required = 2 x 2= 4 No’s
- We can use Series-Parallel Connection for Battery
Summary:
- Total Electrical Load=380 Watt
- Total Electrical Load=475VA
- Size of Inverter= 712 VA
- Size of Battery Bank= 101.3 Amp/Hr
- For 120 Amp/Hr , 12V DC Battery : Series Connection & 2 No’s of Battery or
- For 60 Amp/Hr , 12V DC Battery : Series-Parallel Connection & 4 No’s of Battery
JIGNESH PARMAR
