Over Load Relay & Contactor for Starter
May 20, 2011 12 Comments
Over Load Relay & Contactor for Motor Starter:
Types of Over Load Relay:
- Class 10: Would Trip after 10 seconds.
- Class 20: Would Trip after 20 seconds.
- Class 30: Would Trip after 30 seconds.
- Over Load Relay should be set 115% to 130% of Motor Full Load Current.
- Class 10 is faster than Class 20 and Class 30 over Load Relay.
Size of over Load Relay:
|
Size |
Amp Capacity |
|
S00 |
0.1 To 0.4 |
|
0.4 To 0.6 |
|
|
1.6 To 6 |
|
|
3 To 12 |
|
|
S0
|
3 To 12 |
|
6 To 25 |
|
|
S2 |
6 To 25 |
|
13 To 50 |
|
|
S3 |
13 To 50 |
|
25 To 100 |
|
|
S6 |
50 To 200 |
|
S10 & S12 |
55 To 250 |
|
200 To 540 |
|
|
300 To 63 |
Contactor Coil:
| Coil Voltage (40 To 50 Hz) | Suffix |
| 24V | T |
| 48V | W |
| 110V To 127V | A |
| 220V To 240V | B |
| 277V | H |
| 380V To 415V | L |
Type of Contactor for Starter:
|
Contactor |
Application |
|
AC1 |
Non-Inductive or Slightly Inductive ,Resistive Load |
|
AC2 |
Slip Ring Motor |
|
AC3 |
Squirrel Cage Motor |
|
AC4 |
Rapid Start / Stop |
|
AC5a |
Switching of Electrical Discharge Lamp |
|
AC5b |
Switching of Electrical Incandescent Lamp |
|
AC6a |
Switching of Transformer |
|
AC6b |
Switching of Capacitor Bank |
|
AC7a |
Slightly Inductive Load in Household or same type load |
|
AC7b |
Motor Load in Household Application |
|
AC8a |
Hermetic refrigerant Compressor Motor with Manual O/L Reset |
|
AC8b |
Hermetic refrigerant Compressor Motor with Auto O/L Reset |
|
AC12 |
Control of Restive Load and Solid State Load with optocoupler Isolation |
|
AC13 |
Control of Restive Load and Solid State with T/C Isolation |
|
AC14 |
Control of Small Electro Magnetic Load ( <72VA) |
|
AC15 |
Control of Small Electro Magnetic Load ( >72VA) |
Making and Breaking Capacity of Contactor:
| Contactor | Making Capacity(Amp) | Breaking Capacity (Amp) |
| AC1 | 1.5 X motor rated current | 1.5 X motor rated current |
| AC2 | 4 X motor rated current | 4 X motor rated current |
| AC3 | 10 X motor rated current | 8 X motor rated current |
| AC4 | 12 X motor rated current | 10 X motor rated current |
| AC5a | 3 X motor rated current | 3 X motor rated current |
| AC5b | 1.5 X motor rated current | 1.5 X motor rated current |
| AC6a | 12 X motor rated current | 10 X motor rated current |
| AC6b | 12 X motor rated current | 10 X motor rated current |
| AC7a | 1.5 X motor rated current | 1.5 X motor rated current |
| AC7b | 8 X motor rated current | 8 X motor rated current |
| AC8a | 6 X motor rated current | 6 X motor rated current |
| AC8b | 6 X motor rated current | 6 X motor rated current |
| AC12 | ||
| AC13 | 10 X motor rated current | 1.1 X motor rated current |
| AC14 | 6 X motor rated current | 6 X motor rated current |
| AC15 | 10 X motor rated current | 10 X motor rated current |

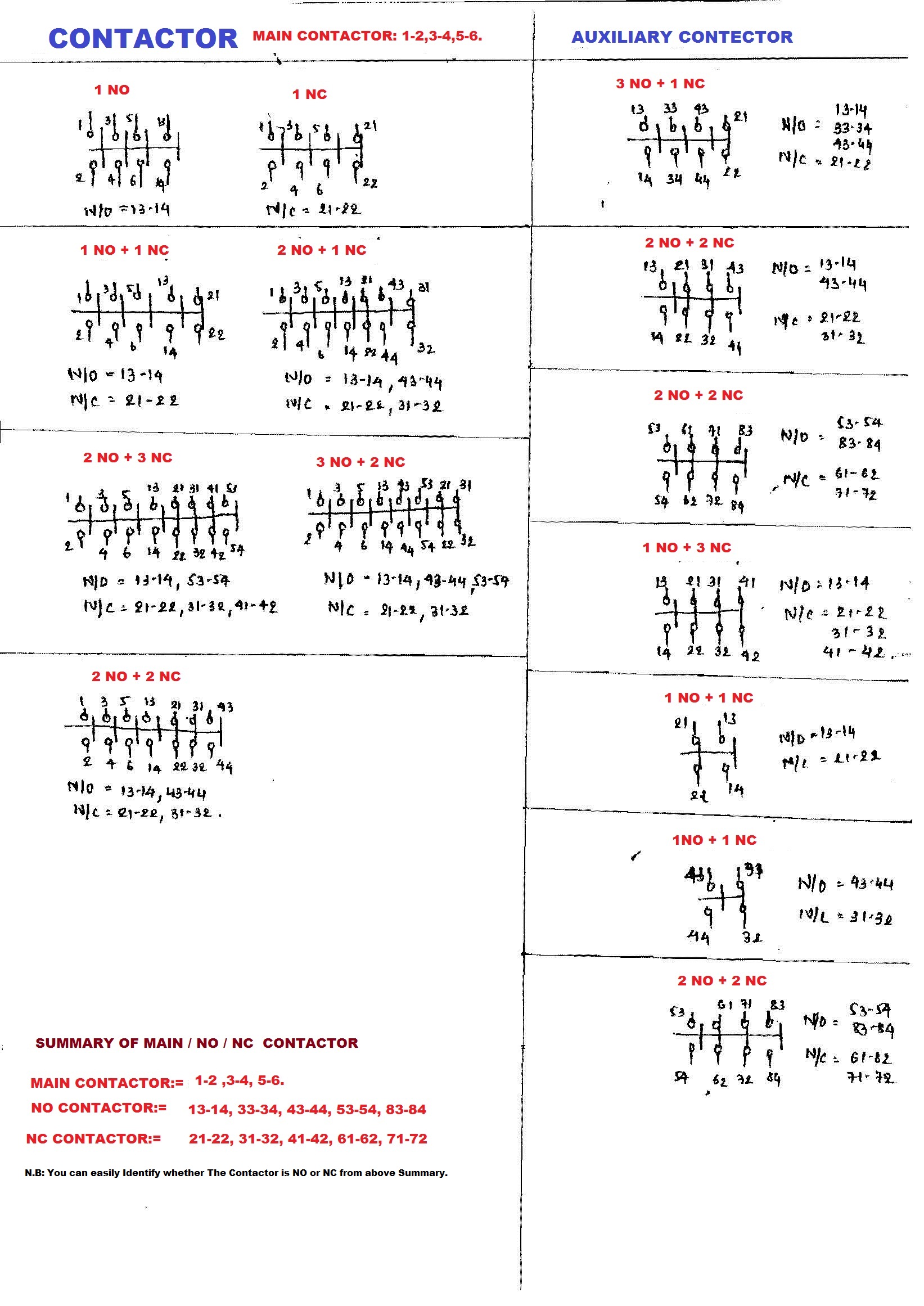

Contactor Status:
| Contactor Status | Continuity Between Pins (N/C) | Non Continuity Between Pins (N/O) |
|
Power Not Applied |
32 and 33 |
21 and 22 |
|
11 and 12 |
||
|
A1 and A2 |
||
|
B1 and B2 |
||
|
Power Applied |
21 and 22 |
32 and 33
|
|
11 and 12 |
||
|
A1 and A2 |
||
|
B1 and B2 |
Main Circuit Voltage of O/L Relay & Contactor:
- A.C= 240V,415V
- D.C=230V,460V,600V
Contactor’s Coil Voltage:
- A.C= 40V,220V,240V,415V
- D.C=24V(For PLC),110V,230V,460V
Rated Current of Contactor: (Thermal and Intermediate Duty):
- A.C= 6,10,16,25,63,100,160,200,315,400,630,800 Amp
- D.C= 16,20,80,160,315,1250,8000 Amp.
|
Contactor / Relay Setting / Fuse / Cable for DOL STARTER |
||||||||
|
H.P |
KW |
FLC |
Contactor Size (Amp) |
Relay setting |
Fuse |
Cable (mm2) |
||
|
Min |
Max |
Cu |
Allu |
|||||
|
0.5 |
0.37 |
1 |
– |
0.8 |
1.17 |
4 |
1 |
1.5 |
|
0.75 |
0.55 |
1.3 |
9 |
1 |
1.5 |
4 |
1 |
1.5 |
|
1 |
0.74 |
1.9 |
9 |
1.6 |
2.3 |
6 |
1.5 |
2.5 |
|
1.5 |
1.11 |
2.6 |
9 |
2 |
3 |
6 |
1.5 |
2.5 |
|
2 |
1.49 |
3.7 |
9 |
2.5 |
3.7 |
10 |
1.5 |
2.5 |
|
3 |
2.2 |
4.8 |
9 |
4 |
5.9 |
16 |
1.5 |
2.5 |
|
5 |
3.73 |
7.8 |
9 |
6.3 |
9.4 |
20 |
1.5 |
2.5 |
|
7 |
5.22 |
11.2 |
12 |
8 |
11.7 |
25 |
2.5 |
4 |
|
10 |
7.46 |
16 |
16 |
12.5 |
18.7 |
25 |
4 |
6 |
|
12.5 |
9.32 |
19 |
32 |
16 |
23.4 |
32 |
4 |
6 |
|
15 |
11.19 |
20.8 |
32 |
16 |
23.4 |
50 |
6 |
10 |
|
20 |
14.92 |
28 |
32 |
20 |
30 |
50 |
6 |
10 |
|
25 |
18.65 |
34 |
38 |
32 |
37.4 |
63 |
10 |
16 |
|
30 |
22.38 |
40 |
45 |
32 |
47 |
80 |
16 |
25 |
|
40 |
29.84 |
53 |
63 |
50 |
59 |
100 |
25 |
35 |
|
50 |
37.3 |
65 |
70 |
57 |
65.5 |
125 |
25 |
50 |
|
60 |
44.76 |
78 |
85 |
70 |
88.9 |
125 |
25 |
50 |
|
75 |
55.95 |
96 |
110 |
85 |
98.2 |
160 |
50 |
70 |
|
100 |
74.6 |
131 |
140 |
115 |
168 |
200 |
70 |
95 |
|
125 |
93.25 |
156 |
170 |
115 |
168 |
250 |
120 |
150 |
|
150 |
111.9 |
189 |
205 |
160 |
234 |
315 |
150 |
240 |
|
180 |
134.28 |
227 |
250 |
160 |
234 |
355 |
185 |
300 |
|
215 |
160.39 |
271 |
300 |
200 |
299 |
400 |
– |
– |
|
270 |
201.42 |
339 |
400 |
250 |
374 |
500 |
– |
– |
|
335 |
249.91 |
338 |
475 |
320 |
468 |
500 |
– |
– |
|
Relay Range & Back up Fuse for DOL Starter |
|||||
|
H.P |
KW |
Full Load Current (amp) |
Relay Rang(Amp) |
Back Up Fuse |
|
|
Min |
Max |
||||
|
10 |
7.5 |
13.6 |
13 To 20 |
25 |
50 |
|
12.5 |
9.3 |
17 |
13 To 20 |
25 |
50 |
|
15 |
11.2 |
20 |
20 To 30 |
35 |
80 |
|
20 |
14.9 |
28 |
20 To 30 |
60 |
80 |
|
25 |
18.7 |
35 |
30 To 45 |
60 |
100 |
|
30 |
22.4 |
40 |
30 To 45 |
80 |
100 |
|
35 |
26.1 |
47 |
45 To 63 |
80 |
125 |
|
Relay Range & Back up Fuse for Star / Delta Starter |
|||||
|
H.P |
KW |
Full Load Current (amp) |
Relay Rang(Amp) |
Back Up Fuse |
|
|
Min |
Max |
||||
|
20 |
14.9 |
28 |
13 To 20 |
60 |
60 |
|
25 |
18.7 |
35 |
20 To 30 |
60 |
100 |
|
30 |
22.4 |
40 |
20 To 30 |
60 |
100 |
|
35 |
26.1 |
47 |
20 To 30 |
80 |
100 |
|
40 |
29.8 |
55 |
30 To 35 |
80 |
125 |
|
50 |
37.3 |
66 |
30 To 35 |
100 |
125 |
|
60 |
44.8 |
80 |
45 To 63 |
100 |
160 |
|
75 |
55.95 |
95 |
45 To 63 |
125 |
160 |
